Calibration of the M328
I have previously explained how to go about building the M328 in Part (1)
Now this is where it all gets very interesting!
When I watched the VK3YE
video (A number of times may I add), I had always wondered about the 35pF offset and why Peter couldn't eliminate it? I had read the manual written by Karl-Heinz Kubbeler, upside down and inside out around the area of calibration (Section 3.2). I had felt maybe Peter had missed a step, or maybe two? But it would only be when I finally built the project I would be able to put my theory into action! After all I couldn't just pop over to Melbourne and explain, it is not a couple miles down the road from the UK is it, and doubtful some nut with a theory would be welcome asking for a phone number anyway??
Before you start calibration you will need to make yourself a three pronged shorting link, and a get hold of a 100nF (0.1uF) Capacitor. The value can be greater, but not less than 100nF, which will be required for the final part of the Cal procedure:
You then insert the link into all three terminals (1,2,3) on the bottom terminal block, make sure the connection is tight. Press the On button this will put the unit into Self Test Mode:

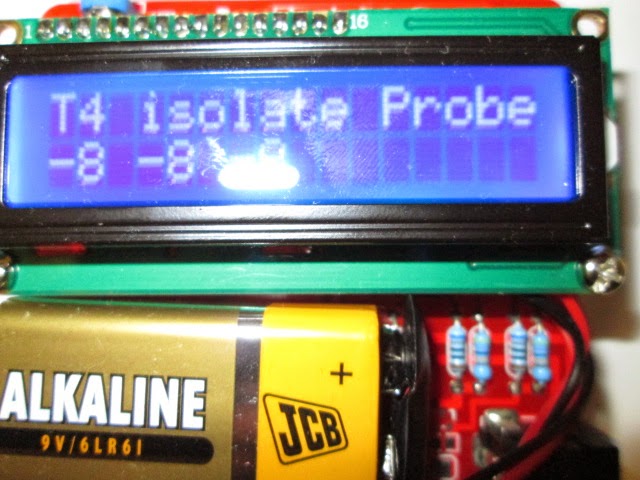

When it gets to "T4 Isolate Probe" which I assume means Test 4? Remove the Link smartly! Do NOT touch
any parts of the unit as it resumes its test and calibration cycle:
Let it move on, until it gets to the last screen which at this point you will require the 100nF Capacitor and Insert it between Terminals 1 & 3:
Leave the capacitor connected, you will see the value pulsate on the bottom line of the display as it is calibrating
(Mine read 91nF). It will keep pulsating the value until the test concludes (it can take about 2 mins?). When the test finishes it will exit the calibration mode as indicated on the display, reverting to
testing the Capacitor and indicating the value being tested as below:
(Sorry about the breadcrumbs on the bench, this is how one works when into resolving problems)
The unit then times out after about 30 secs and switches off.
Now if you have gone about this procedure correctly, when you next turn on the unit it will no longer display the 35pF offset as shown at the start of this blog, the display will show the following after the initial Volts check and sign on etc:
You are now ready to start testing your components. Which we will come to in Part 3.
Shortly after I proved my theory about the elimination of the 35pF offset, I contacted VK3YE via email. Peter came straight back with a BIG thank you, after he too had tried my method out, and it had worked on his unit first time! The only problem he had found, he couldn't then test small value capacitors? Eg: 47 pF measured fine (48pF) but 22pF was not recognised? Hmmm!
I spent my teatime reading the manual again, and found it!:
Part of the introduction in the German manual states:
10: One capacitor can be detected and measured. It is shown with symbol and
value can be from 35pF (8MHz clock, 70pF @1MHz clock) to 40mF with a
resolution of up to
1 pF (@8MHz clock].
So nothing below 35pF will work. Or will it?
Peter mentioned in the last part of his email:
Still you can get around this by making a small jig with (say) 100pF for
use with small capacitors and just deduct 100pF.
